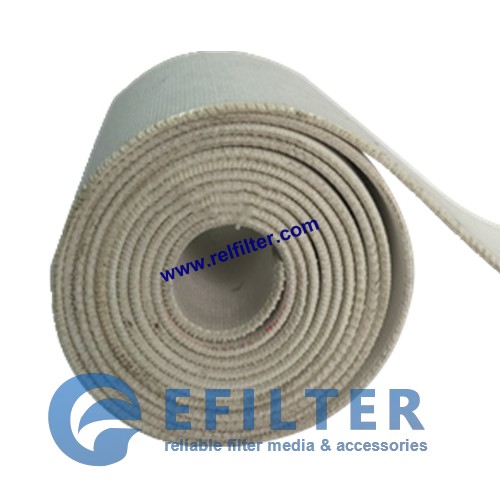

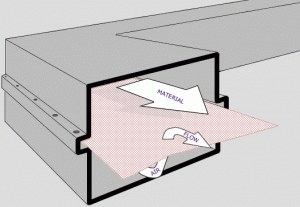

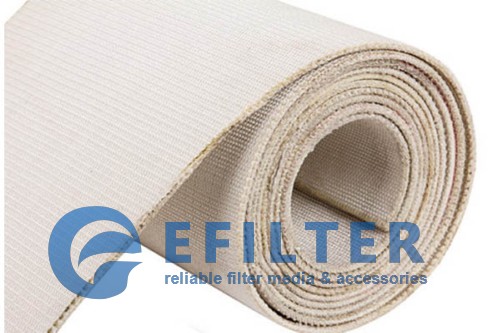

airslide belts are conveyor belts used in closed conveyor systems, where low-pressure air beneath the air-slide is causing air-activated gravity on which powder or pulverized material is conveyed. It is used in various industries in mechanical engineering for pneumatic transport. Can be used for all powder materials, like: cement, ash, powers, etc.

Advantages
No moisture absorption
No caking
Resistant to rotting and decomposition
Complete unloading without residues
Consistent fluidization over the complete surface
Good resistance to abrasion
Low wear and therefore longer life

Low shrinkage even when used under hot and humid conditions

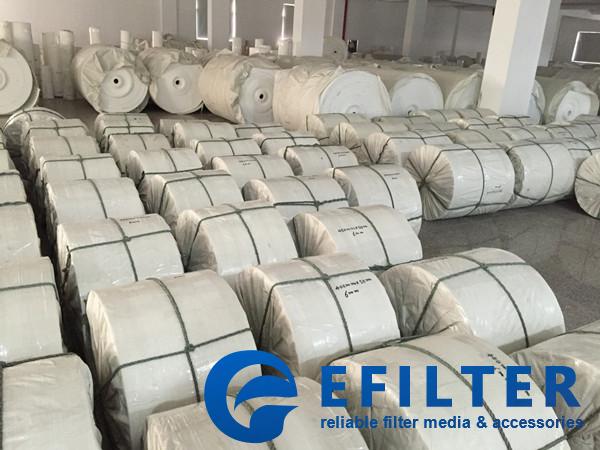

Our capacity: 2000 m² / day.

Thickness:  4mm-10mm and other customized thickness.

Width: can be customized.

Heat resistance: 160 ℃ ~ 200 ℃.

We also accept customization.

Working occasions

In industry:

Power Stations, Filtered dust, Flue ash, discharging flue ash, Coal dust, Building and Construction

Cement, furnace dust, gypsum, limestone, finely ground quartz,

Calcium hydroxide, lead monoxide, quicklime, acid crystals,

Pure clay, phosphates, magnesite concentrate, finely ground

fluorid, production of aluminum, Chemical Industry, Thomas meal (Fertilizer)

Rubber compounds, sinter dust, catalysts, Sodium sulfate, Soap powder

In machinery:

Silos /Tanks, Discharging systems, Warehouse units, Mixing equipment

Homogenizing systems, Chute Bottoms, Conveyor systems, Ventilator systems

Aeration systems, Vehicles, Silo truck discharging cones, Railway wagon discharging cones

Vessel aeration & discharging bottoms, Container aeration & discharging bottoms

Powder Coating Machinery, Bottoms for sinter basin
