filter cloth

PTFE membrane glass fiber filter cloth

high filter efficiency
extended working life
high dust holding capacity

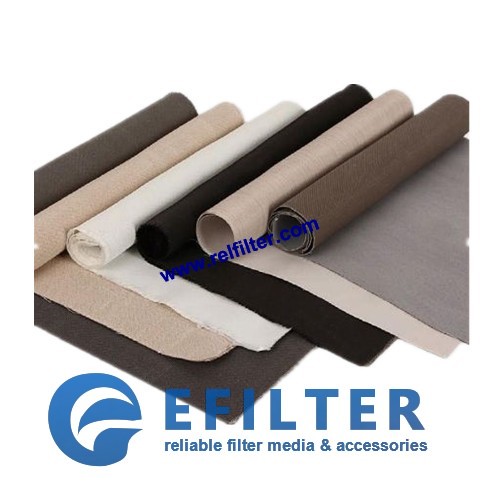

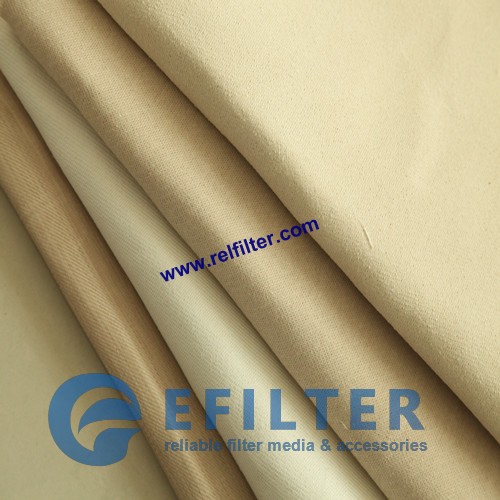

Product description: We supply PTFE membrane glass fiber filter cloth in weight 350~900gsm, with different woven type and different finish, such as Acid Resistance Finish, PTFE Finish, Chemical Resistance Finish, PTFE membrane/ PTFE laminated
INQUIRY

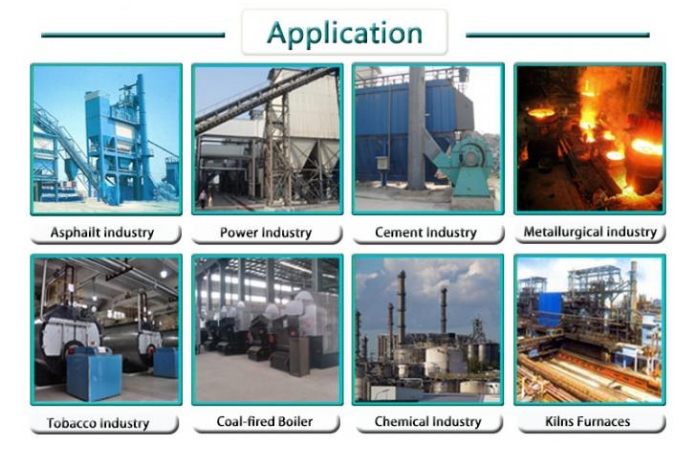

Glass fiber filter cloth is one type of specially processed and made glass fabric.It is an ideal high temperature resist filter cloth and glass cloth filter bags are widely used in industrial dust clean area,air pollution and valuable dust recycling,etc.

Specifications of Fiberglass Filter Cloth

Weight: 350~900 g/m2

Thickness: 0.30~0.90mm

Air permeability: can be customized.

Operating temperature: 260℃

Instant: 280℃

Features

Fiberglass filter cloth has high covering capacity and good air permeability,thus providing higher filtration efficiency,lower filtration resistance.

Normal types

Item No.	LOI (%)	Weave	Weight (g/m2)	Mullen burst (kpa)	Tensile strength (N/2.5cm)		Air permeability(cm3/cm2/s·127pa)	Finished	Running temperature (°C)
Item No.	LOI (%)	Weave	Weight (g/m2)	Mullen burst (kpa)	warp	weft
RFA301	> 10	double twill	780-850	> 6200	> 2400	> 2000	15-30	PTFE	<260
RFI301	> 10	double twill	780-850	> 6200	> 2400	> 2000	15-30	PI	<260
RFB302	> 2	1/3 twill	450-500	> 4500	> 2000	> 1200	20-36	GSP	<260
RFC302	> 5	1/3 twill	340-380	> 4500	> 2000	> 1200	20-36	AR	<260
RFA303	>10	1/3 twill	320-360	> 3500	> 1400	> 800	22-35	PTFE	<260
RFC303	> 5	1/3 twill	900-950	> 3400	> 1200	> 700	22-35	AR	<260
RFD502	> 7	satin	900-950	> 8000	> 3000	> 2400	15-25	PD	<400
RFA404	> 10	double twill	800-850	> 5000	> 2600	> 2200	15-30	PTFE	<260
RFE201	>1.7	satin	550-600	> 5500	> 2200	> 2000	20-35	PG	<260
RFE203	> 1.7	1/3 twill	550-600	> 5500	> 2200	> 2000	20-35	PG	<260
